S-Band Integrated Sector Antenna

Extended Coverage, Maximum Performance. The power of the Wave Relay MANET integrated directly into an antenna extends the enterprise to the edge and over large geographic areas.

Description

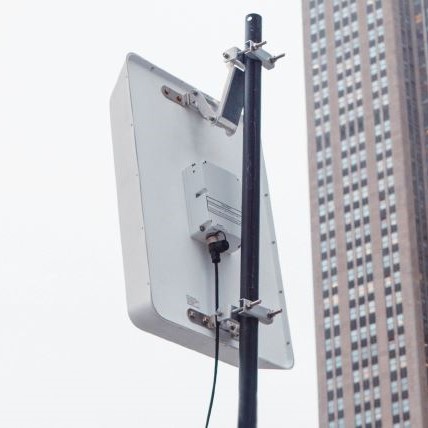

Persistent Systems’ engineering team designed the Integrated Antennas to eliminate the pains of tower antenna installations without sacrificing antenna performance. Mounting brackets accommodate pole diameters up to 2-in. (Sector) and up to 3-in. (Directional) and use standard fasteners that require no specialized tools. The simple bracket allows you to adjust the tilt angle to provide complete coverage.
FREQUENCY: 2.2 – 2.5 GHz
POLARIZATION: Slant L/R & Vertical
GAIN: 12 dBi
TRANSMIT POWER: 10W
PORT-TO-PORT ISOLATION: >30 dB
HORIZONTAL BEAMWIDTH (-3 dB): 120°
VERTICAL BEAMWIDTH (-3 dB): 11°
OPERATING TEMPERATURE: -40°C to +60°C
LIGHTNING PROTECTION: Integral surge suppression
POWER INPUT: 100 – 240 VAC 50/60 Hz, 24 – 48 VDC
PEAK POWER CONSUMPTION: 45W
20% DUTY CYCLE POWER CONSUMPTION: 12.1W
