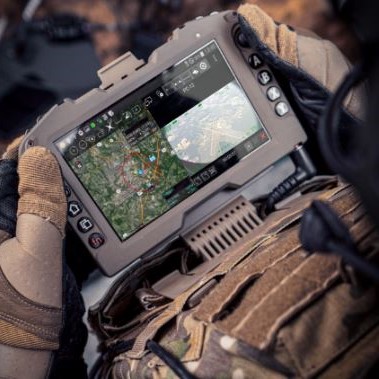

Rugged Display & Controller (Warfighter)

Your direct interface to the networked battlefield. Complete situational awareness is now at your fingertips. With the form factor of a smartphone with a ruggedized case and the addition of physical buttons and joysticks, you have control of the systems on your network. Connect the RDC to the MPU5 to enable Command & Control of unmanned systems, TAK operations, HD video streaming, Wave Relay MANET configuration, and more.

Description

DISPLAY TYPE: Thin-Film-Transistor Liquid, Crystal Display (TFT)
DISPLAY SIZE: 5.7 in. / 14.5 cm
RESOLUTION: 720 x 1280
ASPECT RATIO: 16:9
ORIENTATION: Landscape & Vertical
BACKLIGHT: Visible in sunlight
LUMINANCE: 400 Nits
VIEWING ANGLE: ± 80°
VIEWABILITY: Direct sunlight viewable
CONTRAST RATIO: 900:1
JOYSTICKS: (2) 2-Axis Joysticks
BUTTONS: (14) total buttons Buttons do not activate from 20m water pressure
SENSORS: Accelerometer/Gyrometer, Compass, Temperature, Pressure, 2x Light
MOUSE MODE: Pressing the fn button allows user to control cursor with right joystick and click with the A button
MOUNTING: Includes Juggernaut Chest Mount, 1/4-20 threaded hole for tripod or other mounting system
OPERATING TEMPERATURE: -20° to +70°C
