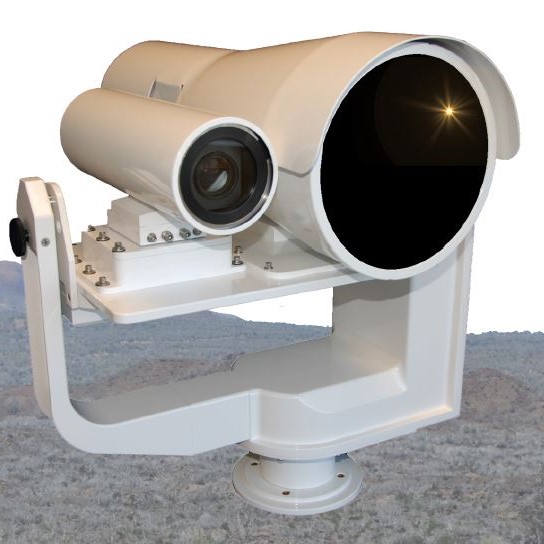

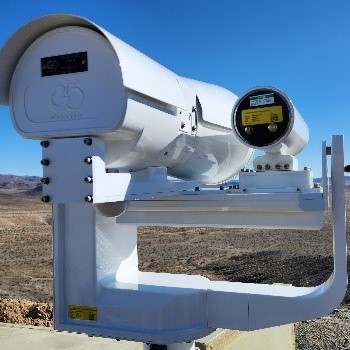

SPX-800 Electro-Optical Infrared Multi-Sensor Camera System

The newly designed SPX-800 is a Senspex integrated electro-optical infrared (EO-IR) multi-sensor camera system featuring a state-of-the-art high-definition visible camera and an extreme long-range thermal camera on a high-speed pan/tilt. With 44 to 785mm continuous zoom, in optimal conditions the camera enables man-sized target detection at ranges in excess of 25 km.

SKU: 950058-00 SD / 950062-00 HD Categories: ,

Description

Video Formats: Analog (NTSC/PAL, CVBS, Differential UTP), Digital IP (HEVC/H.265, H.264, MJPEG, RTP, RTSP, ONVIF)
Control Interface: RS232/422/485, HTTP/TCP/IP, ONVIF Pelco D, TASS, Subsystem Pass-Through
Presets: 100s of Onboard Presets, Supports External Preset Data Transfer
Housing: IP67 Rated, Sealed & Dry Nitrogen Backfilled, Len Defrosters
Operating Temp.: -32⁰C to 55⁰C
Storage Temp.: -40⁰C to 70⁰C
Power: 18-26 VDC / 200W Max
Weight: 102-Lbs. (46kg)
Dimensions: 25.5” (L) x 23” (W) x 22” (H)

THERMAL CAMERA
Focal Plane Array: Cryo-Cooled MWIR, SSL High Operating Temperature
Resolution: SD – 640 x 512 px, HD – 1280 x 1024 px
Cooler Lifetime: 20,000 Operating Hours
Lens Type: F/4 Diamond-Like Coated Continuous Zoom
Lens Features: Auto & Manual, Auto Gain, Edge Enhancement, White/Black Hot

VISIBLE CAMERA
Sensor: 1/3” HD CMOS
Resolution: 1920 x 1080 px, 2MPx
Zoom: Continuous Zoom, 30x Optical, 12x Digital
Signal to Noise: >50dB
Field of View: 63.7⁰ Wide to 2.3⁰ Narrow
Features: Day Night ICR, Wide Dynamic Range, Defog, Noise Reduction, Image Stabilization, Motion Detection
