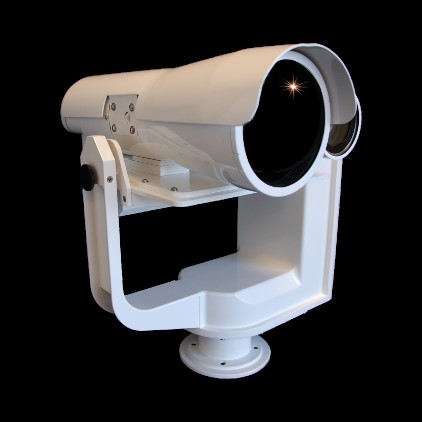

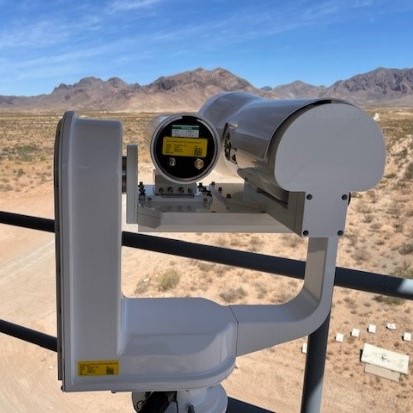

SPX-550 Electro-Optical Camera System

The SPX-550 electro-optical camera system uses a state-of-the-art high-definition thermal imaging and visible spectrum camera to enable the detection of man-sized targets at distances exceeding 18km. The system supports technology modernization programs as well as legacy surveillance programs. The system supports both existing analog video installations and modernized digital video systems.

SKU: 950061-00 SD Categories: ,

Description

Thermal Imaging Camera: F/4 Continuous Zoom Lens, 18⁰ – 1⁰ Horizontal Field of View, 18x Optical / 4x Digital Zoom, Cryo-Cooled MWIR HOT Detector, SD Option (640 x 480 px FPA), HD Option (1280 x 1024 px FPA), Autofocus, Onboard Digital Image Enhancement, Electronic Image Stabilization, Sealed & Backfilled IP67 Housing
Visible Spectrum Camera: 30x Optical / 12x Digital Zoom, Full HD 1080p60 2MPx Detector, Wide Dynamic Range (WDR), Defog Function, Electronic Image Stabilization, Day / Night Auto ICR, 0.002 Lux Minimum Illumination
Integrated Positioning System: High Speed Direct Drive, 16-bit Position Sensing, Fastest 300⁰/second Motor Speeds, 0.1⁰ Accuracy, 0.01⁰ Repeatability, Hundreds of On-Board Presets, Supports External Preset Data
